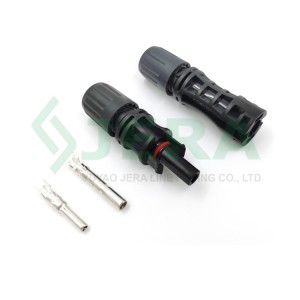

1500V DC Solar Cable Connector
connector
Description:
1500V DC solar cable connector also called PV cable connector, developed for quick and reliable connecting photovoltaic solar cables to the photovoltaic system.
- Rated Voltage : 1500V DC
- Rated impulse voltage : 6000V
- Rated insulation voltage : 4000V
- Rated Current : 30A
- Protection Degree : IP67
- Contact Resistance : ≤0.5mΩ
- Ambient Temperature : ﹣40℃~+85℃
- Mateching with : MC4/PV004
- Insulation Material : PPO
- Contact material : Tin plated copper
- Flame Class : UL94-V0
- Max OD of cable : 7.5mm
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Easy and quick installation
- Low transition resistance
- Waterproof and dust resistant, IP-67
- High current and voltage carrying capacity
- Self-locking design, high mechanical endurance
- UV resistant plastic, high mechanical strength
- Stable performance during long time usage
- Competitive price
SPECIFICATION
1500V DC solar cable connector also called PV cable connector, developed for quick and reliable connecting photovoltaic solar cables to the photovoltaic system.
APPLICATION
PV panel connector MC4 is made of high mechanical strength UV plastic and galvanized steel, possess excellent resistance to high temperature, fire protection, anti-aging and anti-UV properties, to meet the outdoor long-term use under harsh environmental conditions require.
This solar cable connectors with excellent sealing performance, waterproof and dust-proof rating up to IP67 which can guarantee good performance during various weather conditions.
Jera line is operating according to ISO9001, we apply European fundamental test standards, when inspecting the quality of our production operations. Tests including Underwater dielectric testing, Electrical aging test, UV & temperature aging test，Corrosion aging test, Temperature & humidity cycling test etc.
For electrical power cable related products, they are mentioned in EN 50483-4, NFC 33020, and IEC 61238-1.
We are a direct factory who supply a wide range product for solar photovoltaic cable deployment for the ground-mounted solar grid systems. Our product includes MC4 termination and branching connectors, insulation piercing connector, fuse holders, tension clamps, anchor brackets, stainless steel banding and etc.
Welcome to contact us for more information about this 1500V DC solar cable connector price.
Manufacturing
Watch Our Factory Video
Technical specification
| Rated Voltage | 1500V DC |
| Rated impulse voltage | 6000V |
| Rated insulation voltage | 4000V |
| Rated Current | 30A |
| Protection Degree | IP67 |
| Contact Resistance | ≤0.5mΩ |
| Ambient Temperature | ﹣40℃~+85℃ |
| Mateching with | MC4/PV004 |
| Insulation Material | PPO |
| Contact material | Tin plated copper |
| Flame Class | UL94-V0 |
| Max OD of cable | 7.5mm |
PRODUCT VIDEO
our advantages
- JERA LINE is a factory, that produces overhead and underground cable infrastructure.
Which transmits electricity and information,via
-Of f Grid Soar Plants.
– Fiber Optic Cable Networks.
- In following catalog we present PV Cable Harness System for Medium & Large Scale Off Grid Solar Plants.
- JERA is operating according to lS09001, all our products meet the criteria of key regional standards, EN50483-4,IEC-61238-1,NFC 33020,UL 94.
- Welcome to cooperate, our intention is committed to build reliable, long-term business relationships.
Factory picture
ss
Plastic molding workshop
CNC metals workshop
Press forming workshop
Mold processing workshop
Helical wire Forming workshop
Products Assembly workshop
TESTING FACILITY
Under water aging test
Electrical aging test
Temp & Humi cycling test
UV & temperature test
Tensile strength test
Fire resistance test
FAQ
-
1. What area are you in?
We are the factory, located in China, busy in production of cable infrastructure products. One of our solution is PV Cable Harness System for Solar Farms, large and medium scale.
-
2. Are you the direct manufacturer?
Yes, we are direct factory with years of experience.
-
3. Where is your factory located?
Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.
-
4. Why I should choose Jera Line?
- We have production experience from 2012.
- Our products are qualified by EN NFC 3rd party type test reports.
- We have the stable quality control onsite system.
- After sales product guarantee and support.
- You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
- We are committed to long term refashions based on trust.
- We have competitive price. -
5. Why you can offer competitive prices?
Because we the direct factory located in China
-
6. Why can you offer stable quality?
Because we have quality system. On site laboratory and engineering team.
-
7. Do you offer a guarantee on your products?
Yes, we provide product guarantee.
-
8. What are the main products that you produce?
We produce connectors, PV cable harnesses for PV Cable Harness System for Medium & Large Scale Off Grid Solar Plants, constantly developing new products.
-
9. What's your trade term and payment terms?
We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.
-
10. Can you produce OEM orders?
Yes, we can. Can customize the product itself, model, or just a packaging design, brand naming, etc. upon requirements.
-
11. Can you offer me product’s Customization and R & D?
Yes, we have RnD and Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.
-
12. What's your MOQ of new customers?
Negotiable MOQ, depending or project.
-
13. Can you provide free samples?
Yes, we provide samples.
-
14. Will the quality of ordered products be the same to the sample what I have confirmed?
Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.
-
15. Where can I see yours’ products application?
Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t
-
16. How to get in touch with you?
Via email:info@jera-solar.com
-
17. Where can I download your latest catalog
Here you can do it:
Contact Us – YUYAO JERA LINE FITTING CO., LTD. (jera-solar.com)
-
18. Do you have global experience?
Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends
