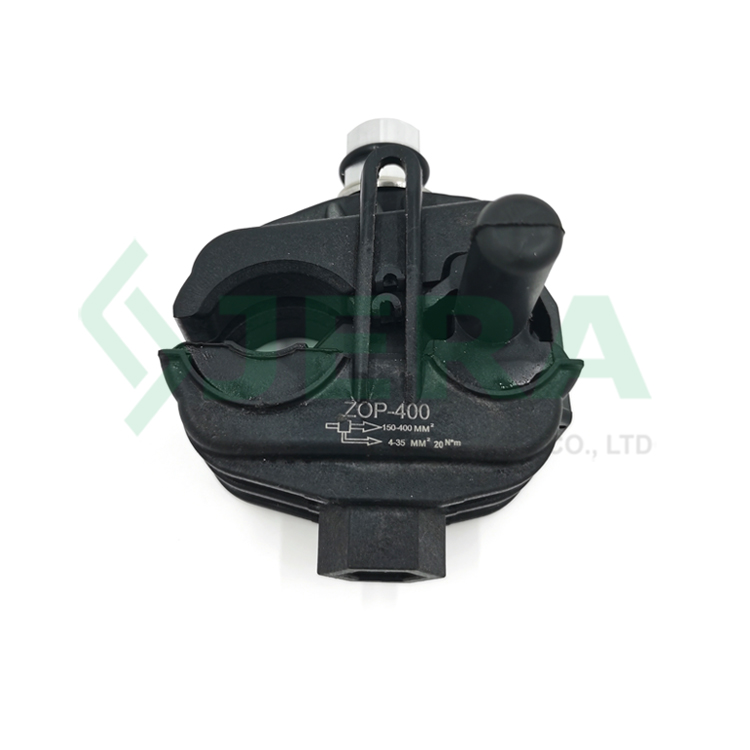

solar PV cable piercing connector ZOP-400
ZOP-400
Description:
Solar PV cable piercing connector ZOP-400, either called insulation piercing connector was designed to use in solar photovoltaic cable deployment to branch the insulated electrical cable from main electrical cable.
With this type of solar cable insulation piercing connector, end user no need to cut the cable sheath and our inner metal teeth will provide reliable electrical contact during application.
- Product code : ZOP-400
- Main cable, mm2 : 150-300
- Branch cable, mm2 : 4-35
- Torque, N*m : 21
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- IP68 grade protection
- Easy to use, save time and costs
- Wide cable range application for power cables
- Both suitable for single or double insulated cables
- Appliance with power cable lines up to 1500Vac (1500 V)
- Appropriate for both copper and aluminum conductors
- Application with fire redundant cables with insulation thickness up to 4 mm.
- Shear head torque aluminum nut provides confident and stable torque.
- Stainless steel, UV resistant polymer materials guarantee a long-term durability
- Good Environmental Stability
- Application temperature – 30 °C up to +50 °C
- Fair price
SPECIFICATION
Solar PV cable piercing connector ZOP-400, either called insulation piercing connector was designed to use in solar photovoltaic cable deployment to branch the insulated electrical cable from main electrical cable.
With this type of solar cable insulation piercing connector, end user no need to cut the cable sheath and our inner metal teeth will provide reliable electrical contact during application.
APPLICATION
Product analogs: SX-240NC, ZOP-300, ACE-240NC.
Solar farm insulation piercing connector are made of high mechanical strength UV plastic, aluminum and galvanized steel, possess excellent resistance to high temperature, fire protection, anti-aging and anti-UV properties, to meet the outdoor long-term use under harsh environmental conditions.
Jera has its own laboratory to do related essential tests refer to European quality standard.(EN 50483-4, and IEC 61238-1). All Jera’s solar photovoltaic connectors had passed the standard tests such as: Dielectrical voltage test in water, UV aging test, Corrosion aging test, Temperature and humidity cycling test, Electrical aging test and etc.
Jera line is a direct insulation piercing connector manufacturer, provides connector for medium and large scale solar power plants. Besides, we also produce solar components for small scale power station or for personal usage. Such as MC4 solar cable connector, MC4 branch connectors, fuse holders MC4 type and etc.
Welcome to contact us for more information about this Solar PV cable piercing connector price.
Manufacturing
Watch Our Factory Video
Technical specification
|
Product code |
Main cable, mm2 |
Branch cable, mm2 |
Torque, N*m |
|
ZOP-400 |
150-300 |
4-35 |
21 |
PRODUCT VIDEO
our advantages
- JERA LINE is a factory, that produces overhead and underground cable infrastructure.
Which transmits electricity and information,via
-Of f Grid Soar Plants.
– Fiber Optic Cable Networks.
- In following catalog we present PV Cable Harness System for Medium & Large Scale Off Grid Solar Plants.
- JERA is operating according to lS09001, all our products meet the criteria of key regional standards, EN50483-4,IEC-61238-1,NFC 33020,UL 94.
- Welcome to cooperate, our intention is committed to build reliable, long-term business relationships.
Factory picture
ss
Plastic molding workshop
CNC metals workshop
Press forming workshop
Mold processing workshop
Helical wire Forming workshop
Products Assembly workshop
TESTING FACILITY
Under water aging test
Electrical aging test
Temp & Humi cycling test
UV & temperature test
Tensile strength test
Fire resistance test
FAQ
-
1. What area are you in?
We are the factory, located in China, busy in production of cable infrastructure products. One of our solution is PV Cable Harness System for Solar Farms, large and medium scale.
-
2. Are you the direct manufacturer?
Yes, we are direct factory with years of experience.
-
3. Where is your factory located?
Jera Line’s factory located in China, Yuyao Ningbo, welcome to visit our factory.
-
4. Why I should choose Jera Line?
- We have production experience from 2012.
- Our products are qualified by EN NFC 3rd party type test reports.
- We have the stable quality control onsite system.
- After sales product guarantee and support.
- You will be granted by additional advantages (cost efficiency, application convenience, new product usage).
- We are committed to long term refashions based on trust.
- We have competitive price. -
5. Why you can offer competitive prices?
Because we the direct factory located in China
-
6. Why can you offer stable quality?
Because we have quality system. On site laboratory and engineering team.
-
7. Do you offer a guarantee on your products?
Yes, we provide product guarantee.
-
8. What are the main products that you produce?
We produce connectors, PV cable harnesses for PV Cable Harness System for Medium & Large Scale Off Grid Solar Plants, constantly developing new products.
-
9. What's your trade term and payment terms?
We accept FOB, CIF trade terms, and for payments we accept T/T, L/C at sight.
-
10. Can you produce OEM orders?
Yes, we can. Can customize the product itself, model, or just a packaging design, brand naming, etc. upon requirements.
-
11. Can you offer me product’s Customization and R & D?
Yes, we have RnD and Molding department, and we consider customization, and introducing the changes to current products. All depends on your project requirement. Also can develop new product per your request.
-
12. What's your MOQ of new customers?
Negotiable MOQ, depending or project.
-
13. Can you provide free samples?
Yes, we provide samples.
-
14. Will the quality of ordered products be the same to the sample what I have confirmed?
Sure, the quality of order products is always the same to quality of samples that you’ve confirmed.
-
15. Where can I see yours’ products application?
Visit our youtube channel https:/www.youtube.com watch?V=DRPDnHbVJEM8t
-
16. How to get in touch with you?
Via email:info@jera-solar.com
-
17. Where can I download your latest catalog
Here you can do it:
Contact Us – YUYAO JERA LINE FITTING CO., LTD. (jera-solar.com)
-
18. Do you have global experience?
Yes, we have. Jera line is operating according to ISO9001:2015 and we have partners and customers in many countries and regions. Every year, we go abroad to participate in exhibitions and meet like-minded friends
